Optical technology for industrial automation
Every machine in the AUTOMATION Series is the result of an integrated engineering approach, where application expertise, technological innovation, and meticulous attention to detail come together to deliver measurable improvements in productivity.
Application Areas and Specializations
Loading and Unloading Systems
Handling and Transfer Systems
Palletizing Solutions
Autonomous Mobile Robots (AMRs)
Collaborative Robots (Cobots)
Optical Vision Systems and Quality Inspection
Test Benches
Assembly Cells
MVI

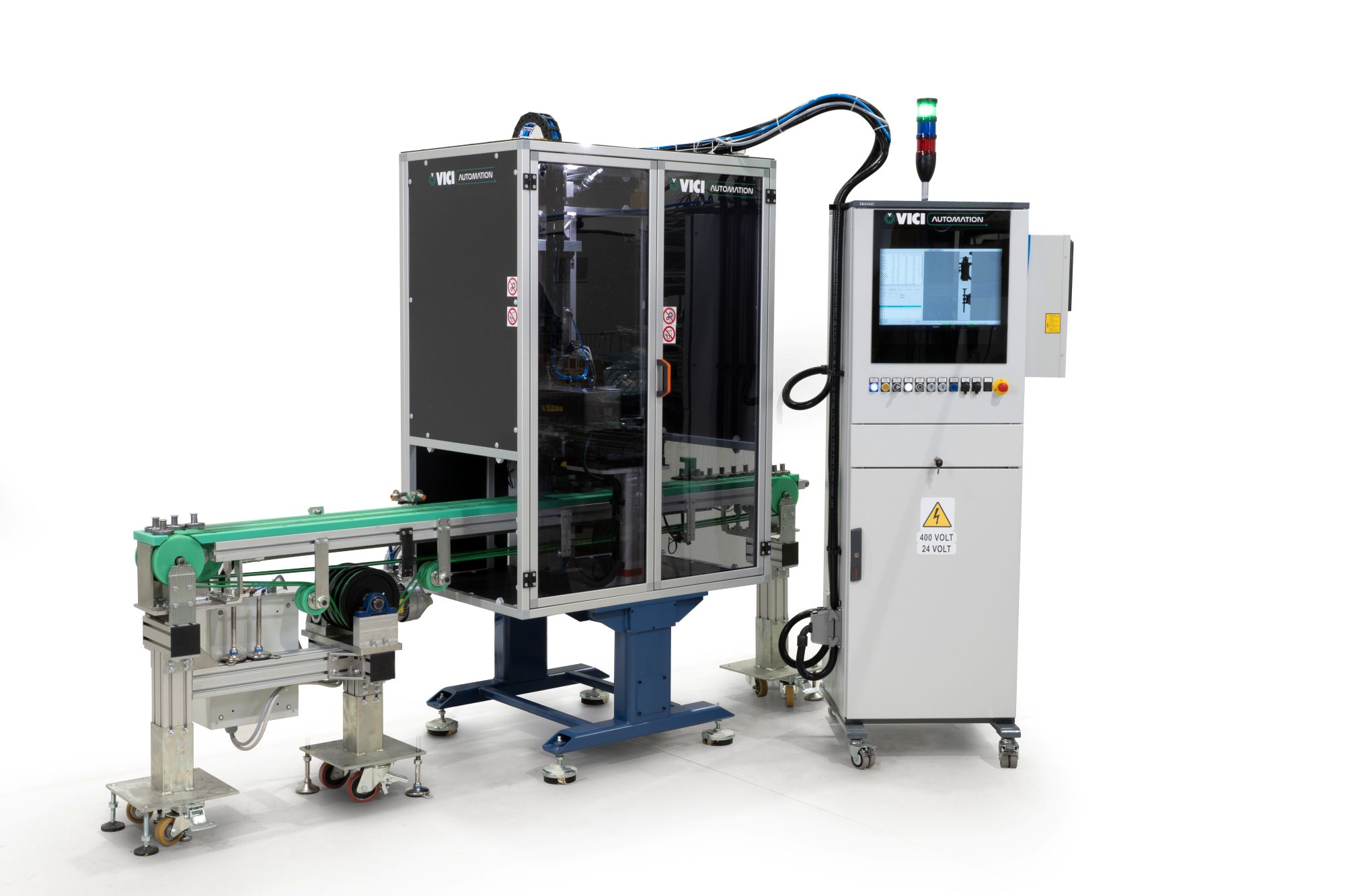

VALVE DIMENSIONAL AND SURFACE INSPECTION MACHINE

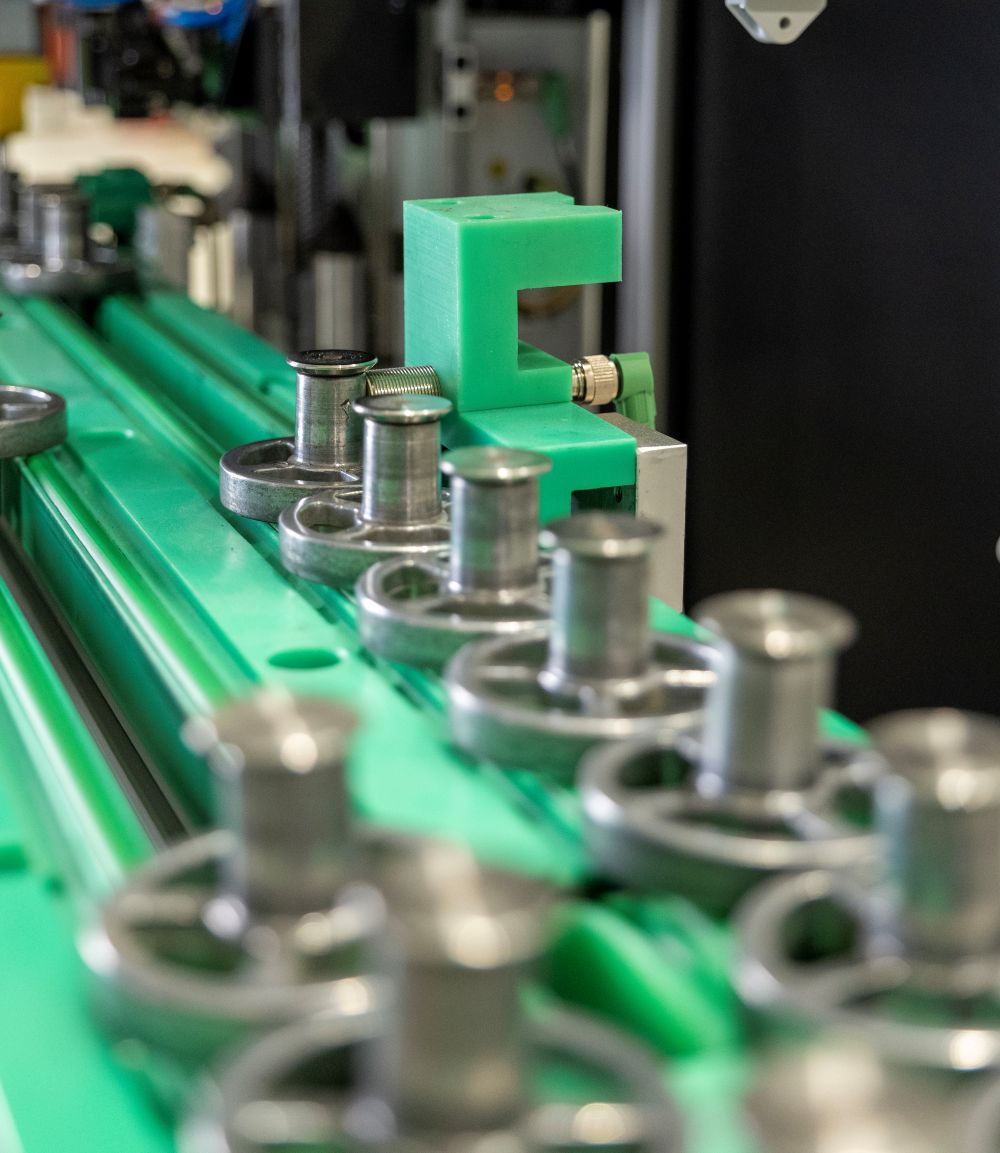

Application: Designed for static dimensional measurement and optical surface inspection of cylindrical components, particularly internal combustion engine (ICE) valves.
System configuration: Available in Passenger Car and Truck versions, with bidirectional operation (left-to-right / right-to-left) and configurations with or without an inspection station.
Loading and handling: Automatic transfer to and from the conveyor via pick-up and off-load stations (optional).

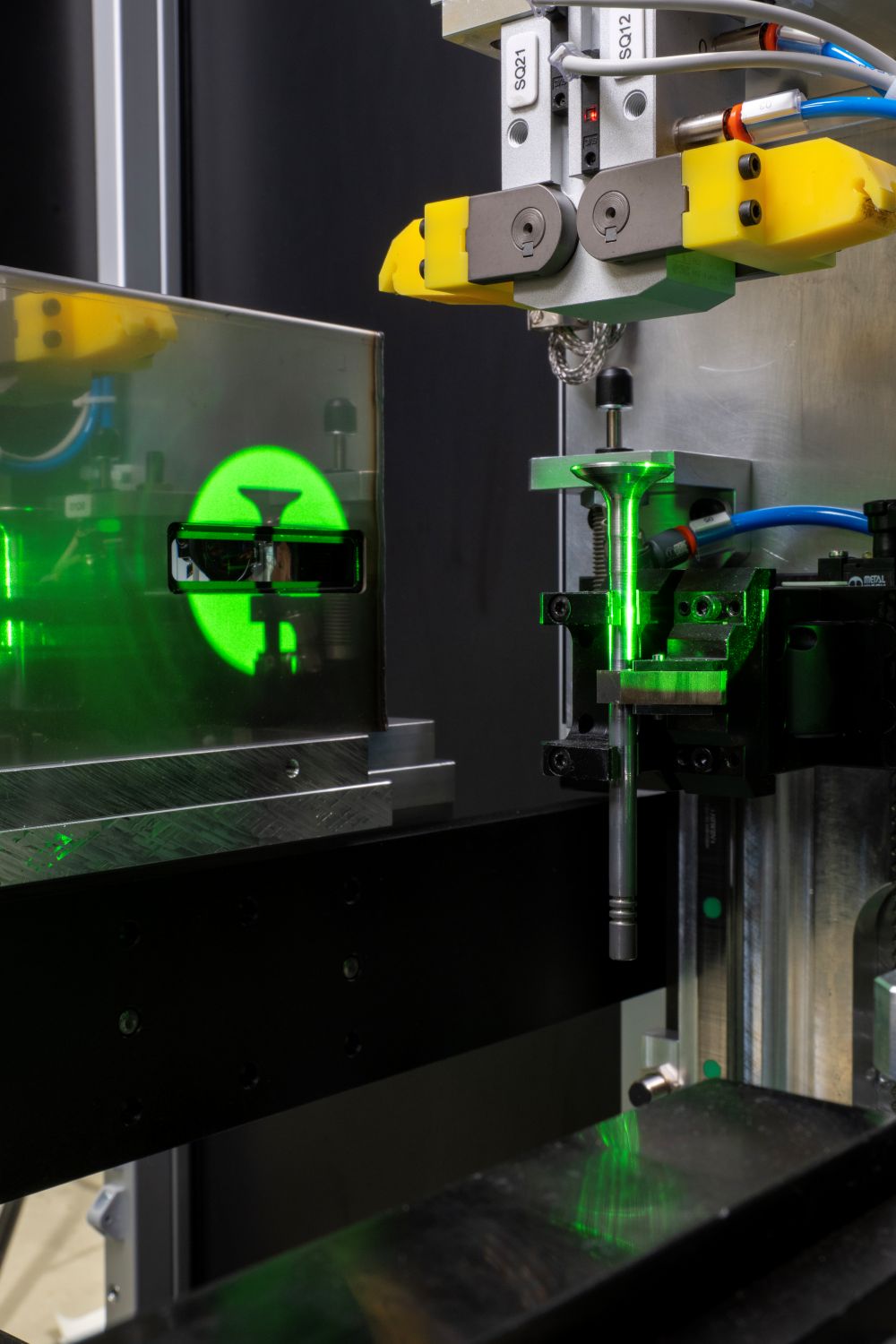

Inspection capabilities: Six dedicated inspection stations (Dimensional, Tip, Face, Seat, Rim, and Stem) provide comprehensive optical inspection. Dimensional measurements are managed independently through a dedicated PC.
NOK part handling: Each inspection station features an independent reject line, enabling automatic separation of out-of-tolerance valves.
Interface and traceability: Two dedicated PCs manage dimensional and surface inspection independently, while PLC signals ensure seamless reject handling and integration with the production line.
PP6
VALVE DIMENSIONAL INSPECTION MACHINE
Application: Designed for the static dimensional inspection of cylindrical components, with a particular focus on internal combustion engine (ICE) valves.
System configuration: Compact and high-speed design capable of operating in both directions (left-to-right and right-to-left).
Loading and handling: Equipped with pick-up and off-load stations for the direct transfer of valves to and from the conveyor belt.
Inspection capabilities: Performs static dimensional measurements on scanned valve profiles. Configurable for the inspection of both passenger car and truck engine valves.
NOK part handling: Provides PLC signals for the automatic sorting and rejection of non-conforming parts along the production line.
