MTL Evo

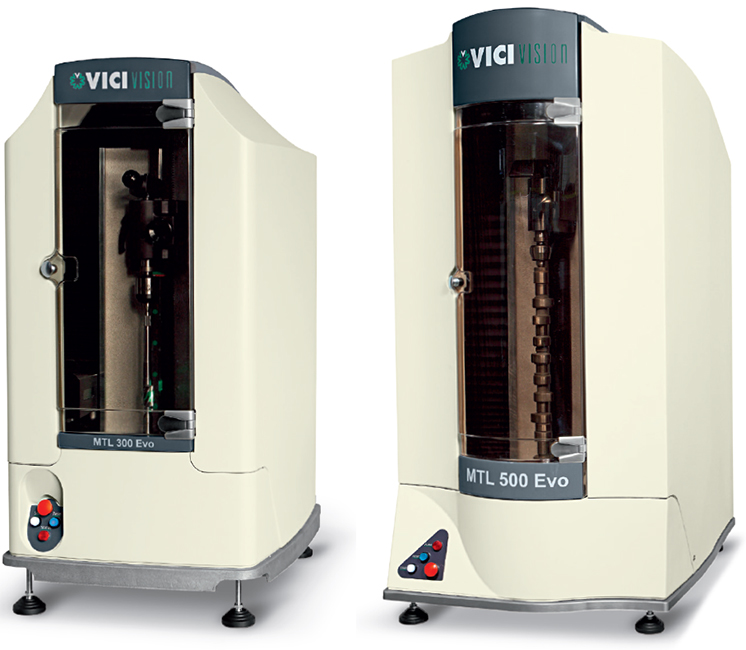

MTL Evo is an optical measuring machine for turned and ground parts equipped with a polycarbonate door that helps to keep the measuring area clean.

The ultimate technology solution in a practical and compact optical measuring machine able to measure parts up to 120 mm in diameter and 500 in length. With MTL Evo you can carry out all measurements with an all-in-one solution: save time and improve the accuracy of the control.

Results in few seconds

MTL Evo includes the functions of profile projectors, micrometers, roundness gage, etc., eliminating human error in acquiring measurements and allowing operators to manage the acquired data.
Carrying out all measurements with a single tool means saving time, manpower and improving the accuracy of the control.

Quality and efficiency in production

In our daily life, carrying out an inspection of what we are doing confirms a correct working practice and ensures us that we are on the right track. This is why VICIVISION improves its optical measuring systems with dedicated tools and specific applications. The most complex measurements are now easier: press a button and get the result.

Greater efficiency on smaller batches

The first pieces of every batch must be measured to set the machining center.

Performing this operation with MTL Evo beside your machine saves up to 30’/1 hour and increases efficiency even in smaller batches.

  • Save up to one hour for each batch change.
  • Avoid Downtimes caused by tool wearing .
  • Reduction of rejects implementing the preventive actions indicated by the measurement trend graphs.
  • Prismatic guides with ball runner blocks guarantee precision over time

Model Measuring field
Ø  x  L
Max. loadable sizes
Ø  x  L  –  Weight
Resolution
Ø  –  L  –  Rotation.
Accuracy
Ø  –  L
Repeatability
Ø  –  L
Dimension
L x P x H  –  Weight
MTL 300 Evo 40 x 270 mm 90 x 280 mm
6 Kg
0.1 µm – 0.1 µm – 0.001° 2+D[(mm)/100] µm
5+L[(mm)/100] µm
0.4 µm
3 µm
530 x 640 x 970 mm
110 kg
MTL 500 Evo 60 x 500 mm 180 x 520 mm
15 Kg
0.1 µm – 0.1 µm – 0.001° 2+D[(mm)/100] µm
5+L[(mm)/100] µm
0.4 µm
3 µm
640 x 770 x 1250 mm
170 kg
MTL 500 Evo 120 x 500 mm 180 x 520 mm
15 Kg
0.1 µm – 0.1 µm – 0.001° 2.5+D[(mm)/100] µm
5+L[(mm)/100] µm
0.6 µm
3 µm
640 x 770 x 1250 mm
170 kg

Cutting-edge software

The brand new MTL 8.10 version is designed to improve the control phase and further extend the number of possible measurements. It includes specific tools for static and dynamic measurements, and dedicated tools for threads nuts, camshafts, turbines, etc.

Advanced software features

New automatic features help the operator to get measurements: self-programming, automatic loading of the part program, step by step assisted programming, DXF comparison.

Measurements report

The software allows the operator to print or export complete and custom pdf measurement reports. Results of measurements on histograms for immediate consultation.
